56 Reihen-Linse 150W SMD3030 130LM/W LED Modul beleuchtend

56 Reihen-Linse 150W SMD3030 130LM/W LED Modul beleuchtend

Straßenlaterne-Modul 130LM/W LED

Straßenlaterne-Modul SMD3030 LED

geführtes Modul 150W im Freien

Herkunftsort:

Shenzhen, China

Markenname:

Sunshineopto

Zertifizierung:

SGS,ROHS

Modellnummer:

SUN-LD321X125-56-5050-TYPE4

Kontakt mit uns

Bitte um ein Angebot
Produkt-Details
Produktname:
Straße 150W führte Licht 224 Stücke LINSE 3030SMD LED 130-140LM/W TYPE3 TYPE4 TYPE5
Modell nein.:
SUN-LD321X125-56-5050-TYPE4
Öffnungswinkel:
Type4
Linsen-Größe:
321X125X8.1mm
Material:
Optischer Grad PC
LED-Chip:
3030 SMD LED, 150mA, 6V, 140-150LM/W
Tranmittance:
91%
Anwendung:
Hohes Buchtlicht/Straßenlaterne/Bereichslicht/Projektlicht/Quadratlicht und so weiter
PWB-Größe:
288x91x2mm
Stromkreis für PWB-Brett:
8 Ähnlichkeit der Reihe 28
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
1
Verpackung Informationen
Kartone
Lieferzeit
3-4 Werktage
Zahlungsbedingungen
T/T, PAYPAL, Western Union, Geld-Gramm
Versorgungsmaterial-Fähigkeit
5000pcs/months
Produktbeschreibung




150W Street led light 224 pieces 3030SMD LED 130-140LM/W TYPE3 TYPE4 TYPE5 LENS





Quick Detail:

Model No:

SUN-LD321X125-56-5050-TYPE4
Material: PC
Beam Angle : TYPE4
Lens size:321X125X8.1mm
PCB size:288x91x2mm
Circuit: 8 series 28 parallel
Match LED: 3030 SMD LED
Small footprint, high light output


Features :

  1. This SKD 224 pieces 3030smd 1w LED Array lens with PCB Module is best choice to design power lamps like 100-200w  and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 80X150/ 90/60/90X120 degree and Vertrial 80x150 degree and so on.




Specifications:


1, Product Name

150W Street led light 224 pieces 3030SMD LED 130-140LM/W TYPE3 TYPE4 TYPE5 LENS

2, Model No

SUN-LD321X125-56-5050-TYPE4

3, Main parts

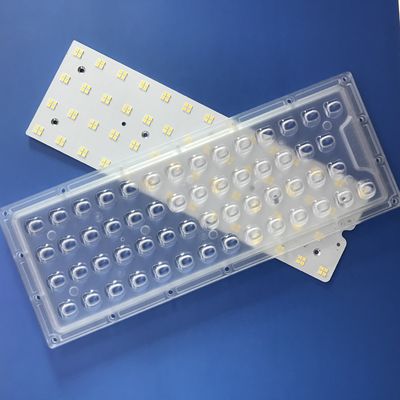

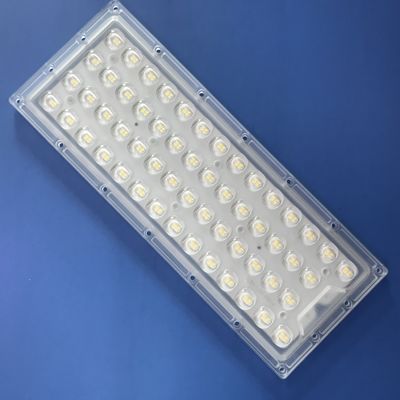

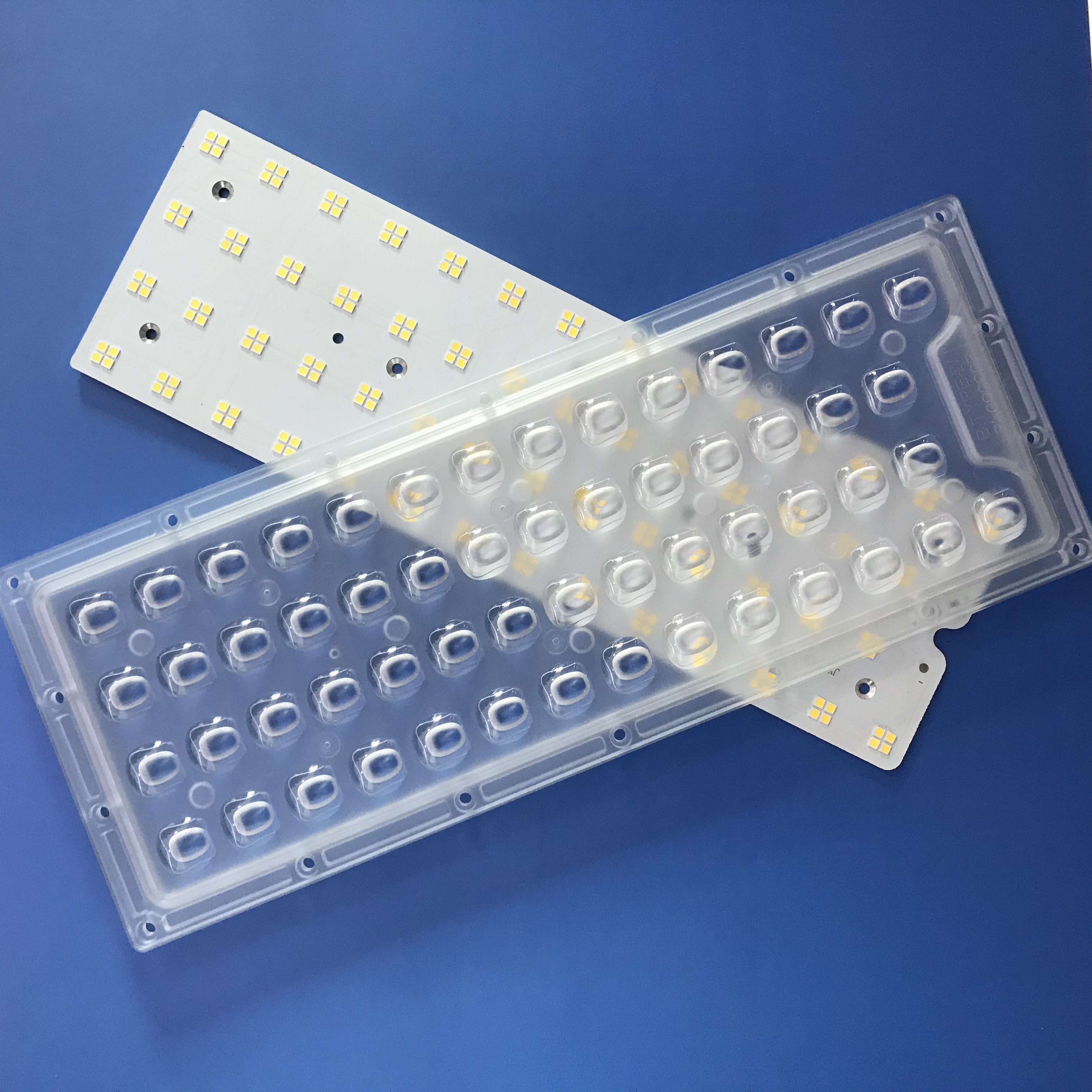

56 Array lens , silicon gasket+PCB+ 3030 SMD LED

4, Lens Material

PC

5, Lens size

236x70MM

6, Transmittance

91%

7,LEDS

Orginal package 3030SMD LED, 140-150LM/W, 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

Type3/ Type4/ Type 5

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days





Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.




56 Reihen-Linse 150W SMD3030 130LM/W LED Modul beleuchtend 0



LENS Dimensions :


 56 Reihen-Linse 150W SMD3030 130LM/W LED Modul beleuchtend 1


PCB board size:



56 Reihen-Linse 150W SMD3030 130LM/W LED Modul beleuchtend 2



Silicon Gasket size:



56 Reihen-Linse 150W SMD3030 130LM/W LED Modul beleuchtend 3


Beam pattern:



TYPE4:

56 Reihen-Linse 150W SMD3030 130LM/W LED Modul beleuchtend 4



TYPE5:

56 Reihen-Linse 150W SMD3030 130LM/W LED Modul beleuchtend 5



56 Reihen-Linse 150W SMD3030 130LM/W LED Modul beleuchtend 6


 56 Reihen-Linse 150W SMD3030 130LM/W LED Modul beleuchtend 7
